Upgrading your exhaust is one of the quickest ways to transform your car's personality, performance, and presence. But the moment you start shopping, you run straight into the ultimate aftermarket debate: titanium vs stainless steel exhaust.

While both materials leave factory exhausts in the dust, they deliver completely different experiences under the chassis. Deciding between them comes down to your preference for metallurgy: how weight shifts your car's handling dynamics, how the material tunes your sound, and how much you want to invest in your build.

The Metal Hierarchy: T304 Stainless vs. Grade 5 Titanium

Not all metals are created equal. The performance of an exhaust comes down to the specific grade of metal chosen and the quality of fabrication.

Stainless Steel: Why the Grade Matters

Stainless steel is the industry benchmark for exhaust manufacturing, but there is a massive divide between budget metals and premium materials:

- T409 and Aluminized Steel: Common in factory exhausts and budget aftermarket systems because they are inexpensive and easy to bend. However, they lack sufficient nickel content and oxidize quickly, resulting in premature surface rust and flaking—especially in wet or salted winter environments.

- T304 Stainless Steel: The gold standard for high-end builds. Formulated with roughly 18% chromium and 8% nickel, T304 delivers exceptional corrosion resistance, superior structural durability, and a clean finish that holds up to daily driving. It is reliable, sounds great, and easily lasts the lifespan of your vehicle. This is the steel we use in our products at Valvetronic Designs.

Titanium: Stepping Up to Grade 5

Titanium operates on its own unique grading scale, ranging from Grade 1 (commercially pure and soft) up to Grade 5 (aerospace-grade alloy).

- Grade 1 & Grade 2: Softer, unalloyed titanium that is easier to bend and form, but features lower tensile strength under high vibration and extreme heat.

- Grade 5 Titanium: The pinnacle of exhaust engineering. Alloyed with 6% aluminum and 4% vanadium, Grade 5 delivers nearly double the tensile strength of commercially pure titanium and vastly superior fatigue resistance. Because Grade 5 is significantly stronger than steel, fabricators can use ultra-thin wall tubing without sacrificing structural rigidity or risking fatigue cracks under track abuse. Naturally, this grade is what we use in all titanium products at Valvetronic Designs.

Weight Distribution: Shedding Mass Where It Counts

The most measurable performance advantage of titanium is its power-to-weight impact. Titanium has a density of approximately 4.51 g/cm³, compared to T304 stainless steel at roughly 8.0 g/cm³—making titanium nearly 45% lighter by volume.

Because Grade 5 titanium is so strong, it can be crafted with razor-thin walls (around 1.0 mm to 1.2 mm), while reliable 16-gauge T304 stainless steel runs around 1.5 mm to 1.65 mm.

• - Factory OEM Cat-Back: 55 – 70+ lbs

• - T304 Stainless Steel System: 35 – 45 lbs (~25% to 35% weight reduction)

• - Grade 5 Titanium System: 16 – 22 lbs (~60% to 70% weight reduction)

Dropping 20 to 40 pounds off the extreme rear of your car does more than improve straight-line acceleration. Because mufflers hang behind the rear axle centerline, shedding weight there reduces your vehicle's polar moment of inertia. Less pendulum weight swinging behind the tires sharpens turn-in response, flattens body roll through chicanes, and keeps the rear planted under hard braking.

Acoustic Resonance and Exhaust Pitch

Material density and wall thickness act as physical filters for sound waves.

A valved stainless steel exhaust utilizes thicker 16-gauge walls that act as a mechanical dampener for higher-frequency vibrations. It absorbs the sharp edges of the exhaust pulse, letting deeper, throatier baritone frequencies roll through. If you love a classic, bass-heavy muscle rumble or a rounded European purr, T304 stainless hits the mark.

Titanium creates an entirely different resonance. Because Grade 5 titanium features thin, hyper-rigid walls, it vibrates sympathetically with high-velocity gas pulses. Rather than absorbing the high frequencies, it amplifies them. This raises the overall exhaust pitch, transforming your car's soundtrack into a crisp, metallic, high-RPM wail reminiscent of a GT race car.

Thermal Cycling, Durability, and the Valved Experience

An exhaust system endures brutal conditions: freezing ambient temperatures, sudden 1,000°F+ exhaust blasts, chassis flex, and road debris.

- T304 Stainless Steel: Highly ductile and forgiving. It absorbs road impacts, resists scrapes on steep driveways, and handles thousands of heat cycles without hardening or cracking.

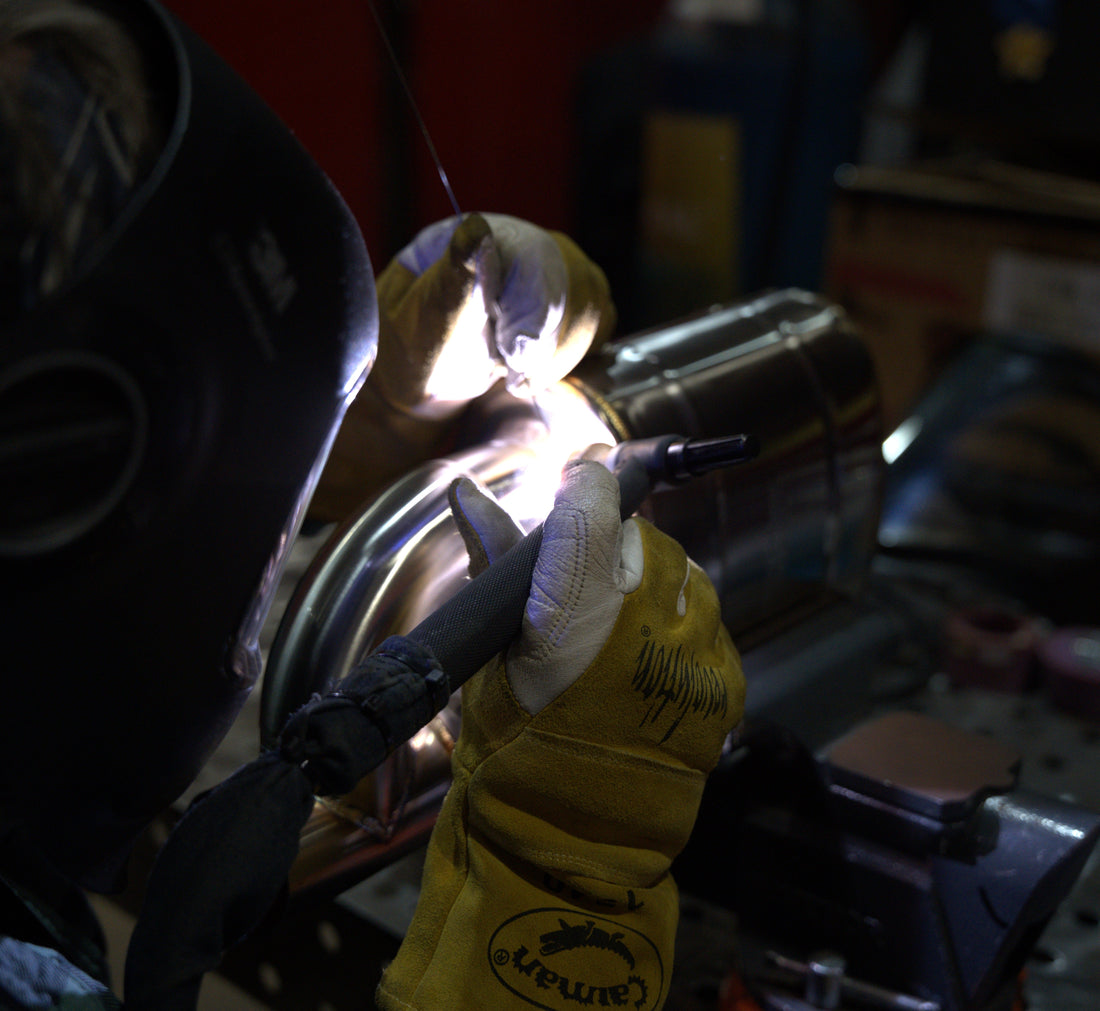

- Grade 5 Titanium: Exceptional resistance to heat distortion and zero susceptibility to rust. Furthermore, titanium dissipates heat quickly once the engine shuts down. However, titanium is inherently stiffer than steel, which means high-end systems must be engineered with precision hanger placement and clean TIG welds to manage long-term vibration.

The Valved Difference

Modern builds demand versatility: civilized sound when pulling into the neighborhood, and an unrestricted soundtrack when the road opens up.

In a valved stainless steel exhaust, the valve casing and internal butterfly mechanisms share identical thermal expansion rates. This ensures smooth, bind-free valve operation whether you are on a freezing morning cold start or a hot highway pull.

A valved titanium exhaust system gives you that same push-button dual personality alongside maximum weight savings and an exotic acoustic profile. Because titanium requires tighter machining tolerances around moving valve assemblies, premium engineering is essential to keep the valves quiet, responsive, and rattle-free across extreme heat cycles.

Which System Belongs on Your Build?

Choosing between stainless steel and titanium comes down to how you drive and what you want out of your machine.

Choose T304 Stainless Steel if: You daily-drive your vehicle, regularly navigate salted winter roads, or want an incredible, deep exhaust note without overspending. A quality T304 setup gives you bulletproof durability, daily-driver compliance, and outstanding value that will outlast your ownership of the car.

Choose Grade 5 Titanium if: You are building a track weapon, canyon carver, or show-stopping weekend exotic where every pound counts. If your priority is trimming weight off the rear axle, chasing that screaming high-RPM exhaust pitch, and showing off fire-blued tips and pie-cut welds, titanium is the ultimate statement piece.

Whatever your ride, whatever your vibe, Valvetronic Designs has got you covered.
